1500W
Brushless motor
-
48V 15AH
Battery
-
60 miles (90km)
Max range
-
25km/h
Legal speed
-
16 x 4.0 inch
CST tires
-
150kg (265lbs)
Max. Payload

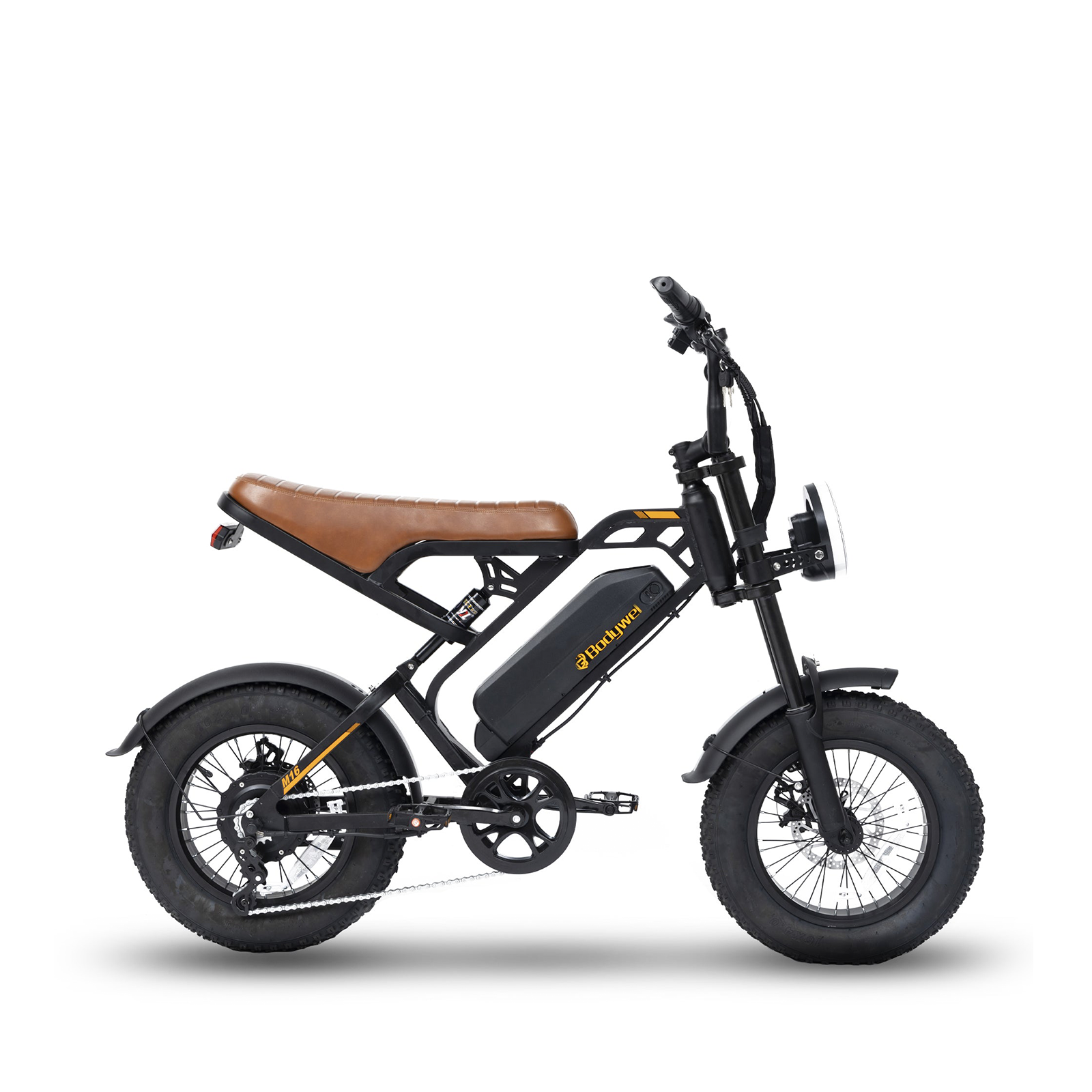

Bodywel M16 Fat Tire E-Bike
-
2-Year Warranty
-
Free Shipping
-
14-Day Trial Ride
2-Year Warranty
Free Shipping
14-Day Trial Ride
Bodywel M16 Fat Tire E-Bike
Bodywel F20
All-Terrain Fat Tire Ebike
16x4.0"
Fat tire
90 KM
On one charge
1500W (peak power)
500W (rated power)
Removable Battery
• Retains over 80% capacity after 500 charge cycles
• Ride up to 90 km on one charge
• Fully recharge in 4-6 hours
- 48V 15Ah
Battery Capacity - With BMS
Battery Cell - 43-60 Miles
With Pedal Assist
Designed Around Your Security & Convenience
Headlight & Taillight
Ride safer day and night with a powerful headlight and high-visibility taillight.
Comfort-Focused Design
Enjoy a relaxed and comfortable ride with the 3D Ergonomic Comfort Seat. High-Density Sponge. Waterproof PU surface
4" color dashboard
Stay in control with a 4" color dashboard and all key switches at your fingertips, turning every ride into smart, data-driven fun.
Dual Disc Brake
Ensure powerful and reliable stopping power with dual disc brakes. Stay confident and safe with every stop.
Effortless Access to Key Data
- LCD Display 4"
- Than Mono Displays Bluetooth
- 3 X Clearer Key Data
4" color dashboard
Bluetooth communication records your ride data in real-time, no need to worry about network or data usage.
Simplified Ride Parameters
The clear display ensures effortless monitoring of speed, battery level, and distance, even in bright sunlight.
Size & Parameter
-
75lbs Bike Weight -
5'3"-6'3" Rider Heights -
265 lbs (150 kg) Payload Capacity
Technical Specifications
| Component | Parameter |
| Motor | 500W brushless motor |
| Battery | 48V 15Ah |
| Charging method | Charge directly on the bike ; Remove the battery to charge |
| Tire | 16 x 4.0" tires |
| Throttle | Thumb Throttle (Optional) |
| Front light | Button control |
| Front fork | Full suspension |
| Waterproof rate | IPX4 |
| Frame material | Carbon Steel |
| Display | LED Color screen (with speedometer, odometer, pedal assist level, etc.) |
| 3 riding method | Pedal assist; Throttle only; Pedal only |
| Brake system | Disc brake |
